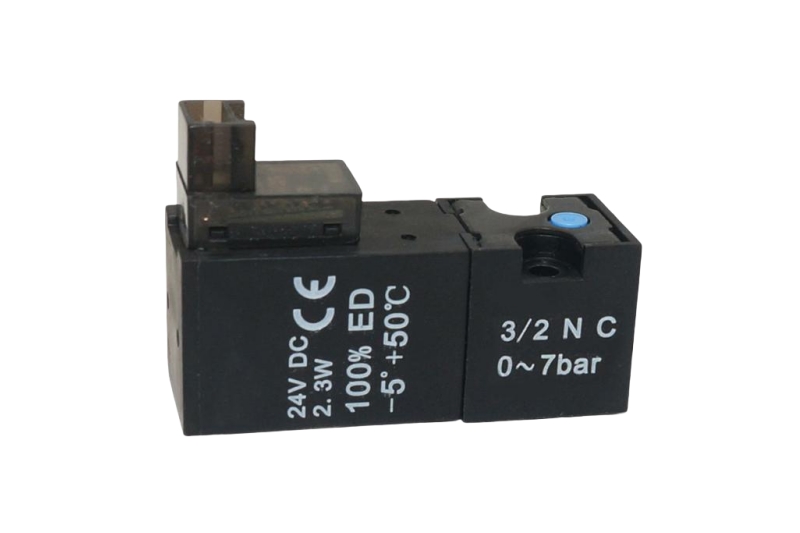

Miniature Solenoid Valves

Power Fluid miniature solenoid valve system is designed for use with air, it is also can called miniature pneumatic solenoid valves.

All version, equipped with manual override, are 3/2way N.C. and N.O. 2/2way N.C 12volt, 24volt D.C. or 110volt, 220volt A.C. with connections of terminal or flying leads.

Applications

Its high switching speed and flow rate make this small valve suitable for different applications.

• Industrial Automation
• Textile Machinery
• Medical sector
• Semi-conductor & electronics

Construction characteristics

-Electrical part:

Miniature solenoid consisting of a coil made of copper wire of different sizes depending on the voltage. Insulate according to F class standards and injection-moulded nylon-glass application. All parts forming the cladding. The electrical connections and the pole pieces protected against corrosion. Electrical connection is by connector or directly with flying leads.

-Mechanical part:

AISI 430E cores, AISI 302 return, NBR seals, Nylon body.

The miniature solenoid valves are mounted on a separate base, multiple base or distributors.

Why choose Power Fluid miniature solenoid valve?

• Low power consumption: Standard power1.2W, can be direct controlled by PLC. Save large operating cost for end users.

• The most compact design: Valve body width is only 10mm or 15mm, that’s very small dimension comparing to traditional solenoid valve, save space.

• Large flow rate: even with so small dimension, its minimum flow rate is more than 14 litres per minute.

• Long service life: Approved by lots of tests, the average service life of the valve can up to 50million cycles.

• High reliability: In any case, the valve action can be granted, even at high cycling rates, the valve still can keep the work stable.

• Terminal: Vertical and horizontal connect can be switched freely
