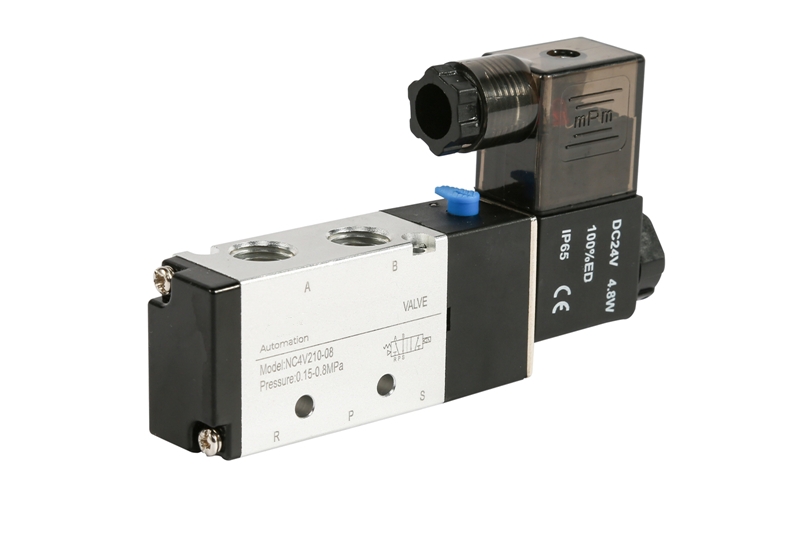

4V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
4V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
4V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
4V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
4V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve

4V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve

5/2,5/3 way pneumatic solenoid valve
Features
  • Spool structure, good tightness and sensitive reaction
  • Three-position solenoid valve have three kinds of central function; double control has memory function
  • Both ends add wearing structure, to make the valve core more stable, and increase the service life
  • The inner hole is manufactured by special technology, with small friction resistance, low starting pressure and long service life.
  • The valve can be integrated with the base to save installation space
  • Manual device, convenient for installation and commissioning

Ordering code

Description

Overall dimensions

Reviews

Function symbol
Applications

- Textile

- Industrial Automation

- Electronics & Semiconductor

- Medical Sector

Electrical characteristics
Voltage Voltage range Power Protection Insulation class Electrical entry Response Time
AC220V -10%~+15% 3.5VA IP65
(DIN43650B)
B class DIN type or
leading wire
type
0.05 second
AC110V 3.5VA
AC24V 3.5VA
DC12V AC:±15% 3W
DC24V 3W
Specification
Inner Structure
 Main component

   1. Cross slot pan screw
   2. Back cover
   3. Spring
   4. Anomalous seal
   5. Valve body
   6. Fat ring
   7. Valve body
   8. Piston
   9. Y ring
   10. Spring
   11. Mannual override
   12. Terminal
   13. Coil
   14. Coil nut
   15. Connecting part
   16. O ring
   17. Plunger
   18. Piloted valve base
Overall dimensions

5/2 way single coil

5/2 way double coil

5/3 way double coil
