Pneumatic Solenoid Valves - 5V Series
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve

5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve

5V210 5/2,5/3 way low power 0.9W pneumatic solenoid valve
  • Low starting pressure ,reset by compressed air, starting pressure<0.3bar
  • Low power consumption, standard power 0.9W
  • Long service life, up to 30milliion times,high reliability
  • Spool structure, good tightness and sensitive reaction, lubrication not required
  • Terminal- Horizontal and vertical insertion can switch freely
  • Small size, save installation space, can be integrated with the manifold.

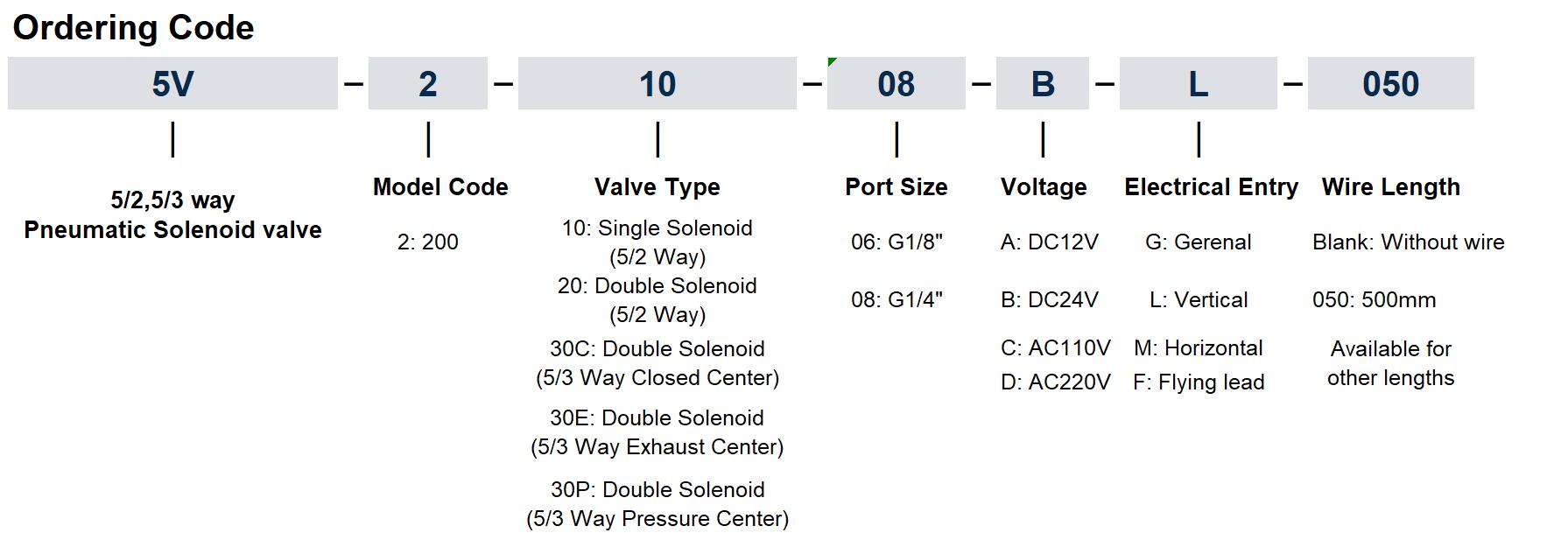

Ordering code

Description

Dimensions

Reviews

5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve

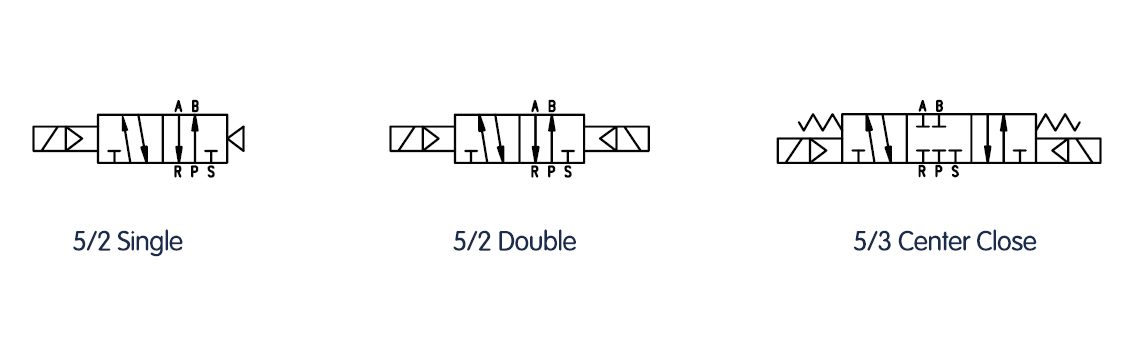

Function symbol
Low starting pressure ,reset by compressed air, starting pressure<0.3bar Low power consumption, standard power 1.2W Long service life, up to 30milliion times,high reliability Spool structure, good tig
Applications

- Textile

- Industrial Automation

- Electronics & Semiconductor

- Medical Sector

Coil Specification
Voltage Voltage range Power IP grade Insulation class Electrical entry
DC12V ±10% 1.2W  Dust proof H class Terminal
DC24V
AC110V -10%~+15% 1.5VA
AC220V
Valve specification
Models 5V-210-06 5V-220-06 5V-230□-06 5V-210-08 5V-220-08 5V-230□-08
Position number 5 port 2 position 5 port 3 position 5 port 2 position 5 port 3 position
Orifice size 14.0mm²(Cv=0.78) 12.0mm²(Cv=0.67) 16.0mm²(Cv=0.89) 12.0mm²(Cv=0.67)
Port size Inlet=Outlet=Exhaust=M5 Inlet=Outlet=Exhaust=G1/8"
Working medium Air (to be filtered by 40um filter element)
Acting Inner Pilot
Working presure 0.15~0.8MPa(21~114psi)
Max.Pressure Resistance 1.2MPa(175psi)
Operating Temperature  -20~70 ℃( no freezing)
Material of body Aluminum
Lubrication Not required
Max.frequency 10 cycles/sec.

Note  1: PT, NPT thread and G thread are available

           2: Be sure to use measures to prevent condensation and freezing in a low temperature environment below 3

           3: The maximum actuation frequencey is in the no-load state

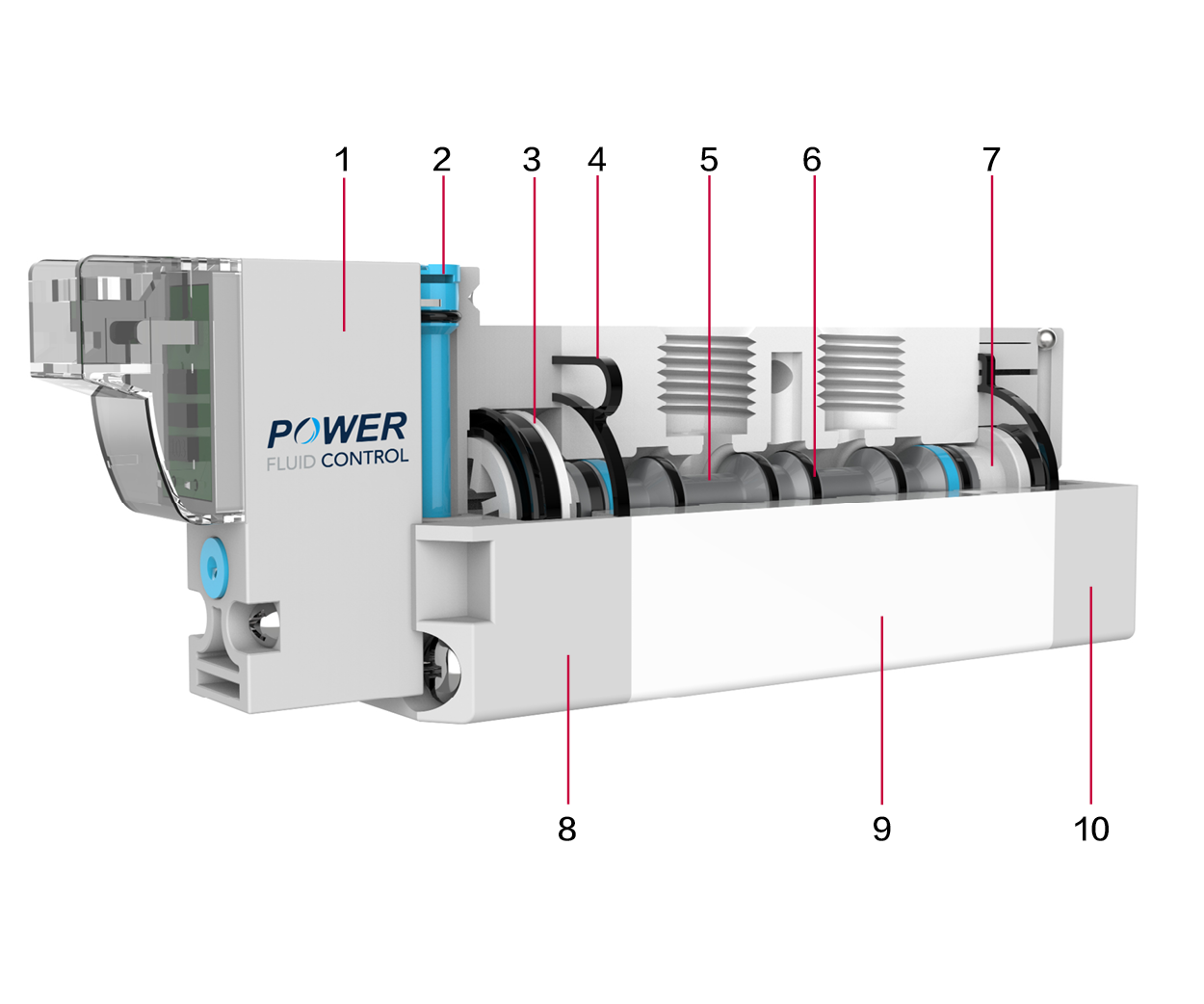

Inner Structure
Main components
1: Pilot valve-High sensitivity structure, low power consumption
2: Manual override-Durable POM, high reliability
3: Large piston-Anti-deformation resin
4: Seals-Anti-deformation rubber
5: Spool-High-precision aluminum alloy
6: C-ring-High wear-resistant rubber
7: Small piston-Anti-deformation resin
8: Front cover-High-strength PBT
9: Valve body-Non-porous precision die-cast aluminum alloy
10: Back cover-High strength PBT
Low starting pressure ,reset by compressed air, starting pressure<0.3bar Low power consumption, standard power 1.2W Long service life, up to 30milliion times,high reliability Spool structure, good tig
Dimensions

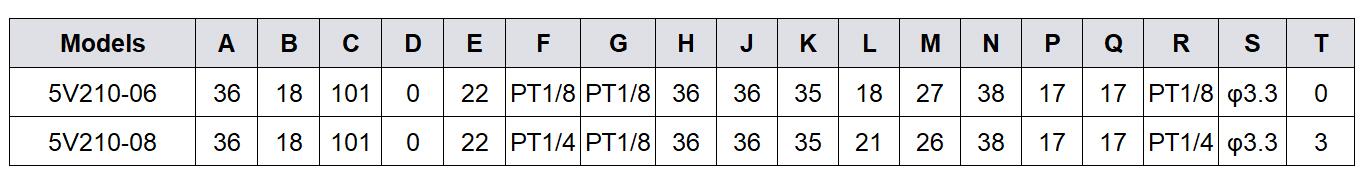

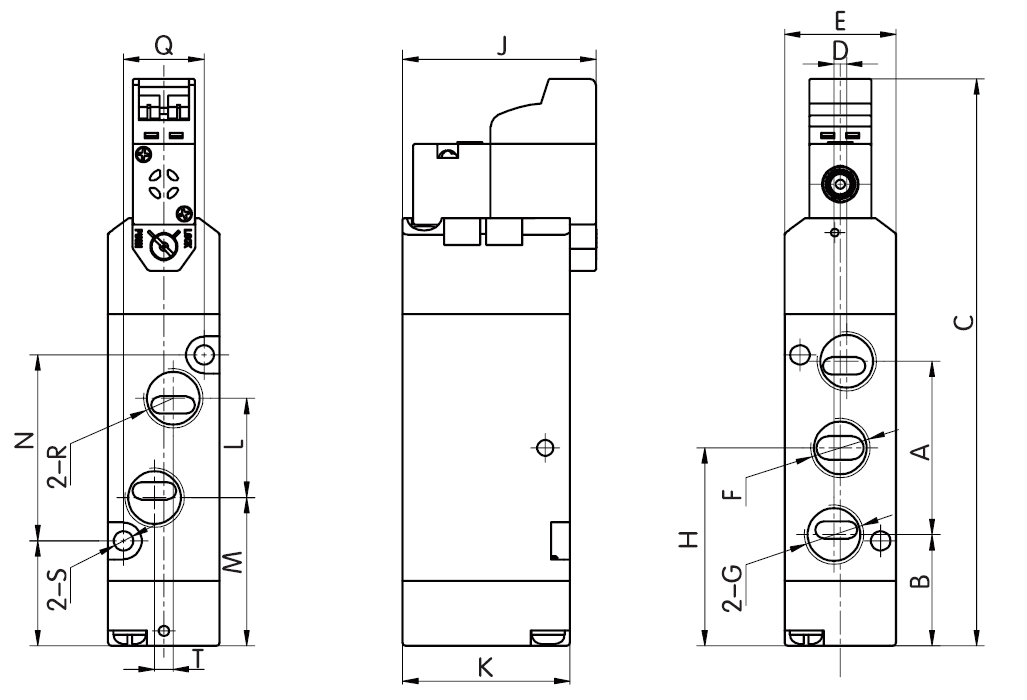

2-positions single coil

Low starting pressure ,reset by compressed air, starting pressure<0.3bar Low power consumption, standard power 1.2W Long service life, up to 30milliion times,high reliability Spool structure, good tig
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve

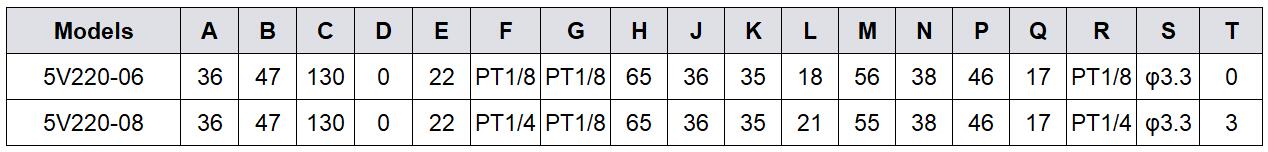

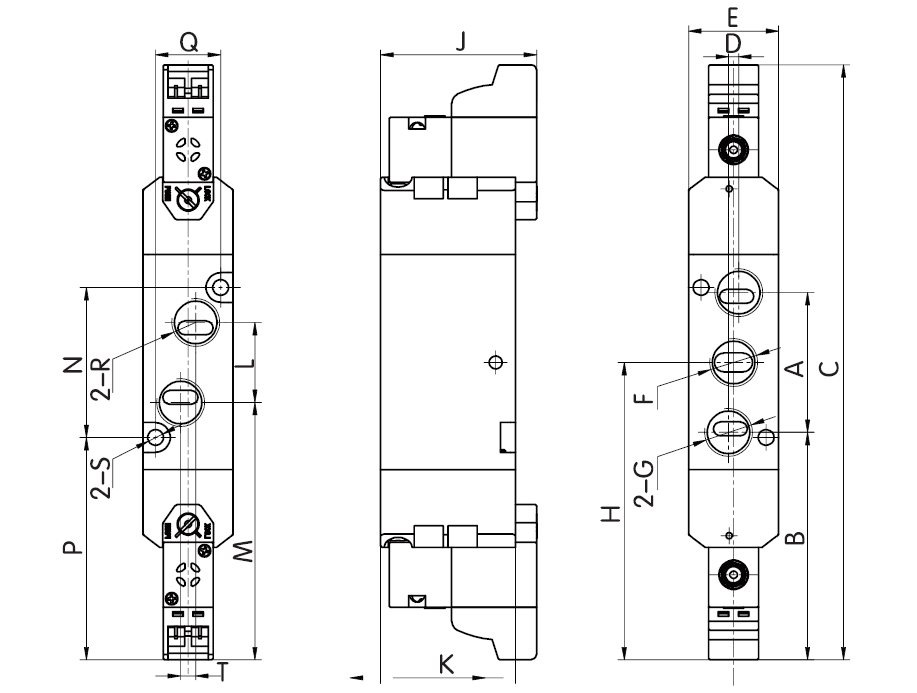

2-positions double coils

NC5V200 series pneumatic solenoid vale
5V200 Series 5/2,5/3 Way Pneumatic Solenoid Valve
