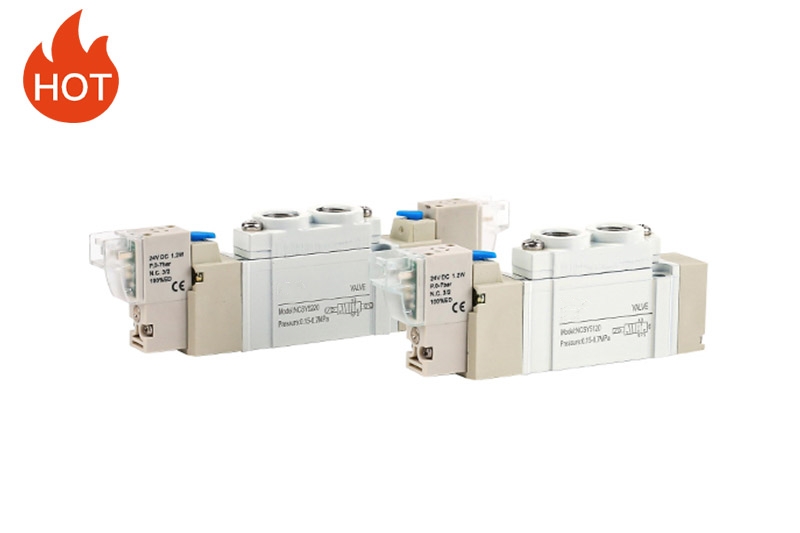

SY5000 Series 5 Port Pneumatic Solenoid Valve
- Low power consumption, standard power 0.9W,others on request
- Large flow Rate, the maximum flow rate can drive cylinder up to Φ80
- Long service life, up to 50million time，high reliability
- Inner exhaust structure, collect the pilot airflow and exhaust intensively from R, S ports
- Terminal- horizontal and vertical insertion can switch freely
- Small size, save installation space, can integrate manifold to form valve group
Ordering Code
Description
Dimensions
Reviews
Best-selling models: SY5120 - 5/2way, single coil; SY5220 - 5/2way, double coil
－ Textile
－ Industrial Automation
－ Electronics & Semiconductor
－ Medical Sector
Note 1: PT, NPT thread and G thread are available
2: Be sure to use measures to prevent condensation and freezing in a low temperature environment below 3℃
3: The maximum actuation frequencey is in the no-load state
Main components
1: pilot valve －high sensitivity structure, low power consumption
2: manual override －durable POM, high reliability
3: Spool －High-precision aluminum alloy
4: Seal－Anti- deformation rubber
5: Small piston－Anti-deformation resin
6: Front cover－High-strength PBT
7: Large piston－Anti-deformation resin
8: Valve body－Non-porous precision die-cast aluminum alloy
9: C-ring－High abrasion resistant rubber
10: Back cover－High strength PBT
2-positions single coil
2-positions double coils
3-positions double coils
