Tri-Clamp Type Angle Seat Valve
DN15-50,Stainless steel CF8/CF8M,Plastic,2/2 way, N.C,N.O,PN16,PN25,PTFE seal Max.180°C,No water hammer
Free samples, Factory price, 12 months warranty
Features
- Long service life
- Large flow, small flow resistance, no water hammer
- Special design flow channel, the flow rate is increased by 30%
- The cylinder made with high-quality stainless steel, can rotate 360 ° and be used in harsh environments
- Automatic valve stem calibration, self-lubricating, no maintenance required
Products
Contact Now

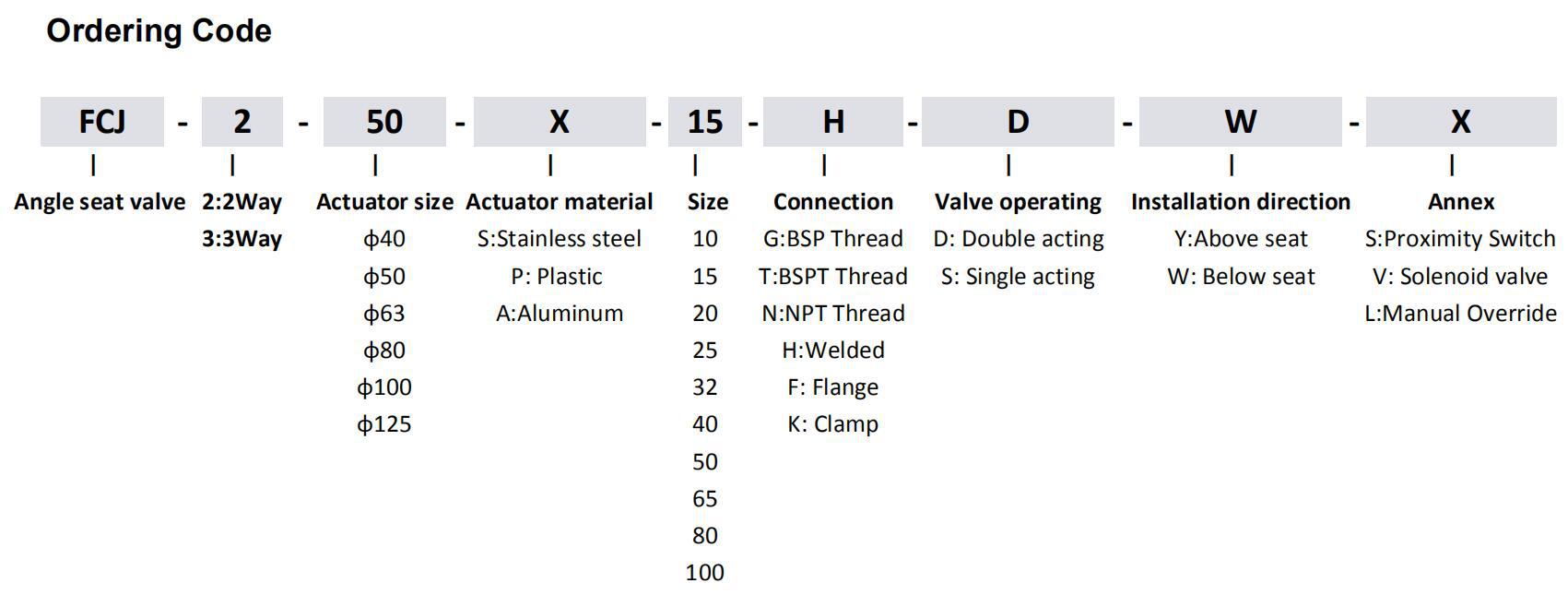

Ordering Code
Description
Dimensions
Reviews
Inner Structure
Main components:
1 - Cap (PC)
2 - Indication Rod(nylon)
3 - Actuator (CF8)
4 - Spring (Steel 65Mn)
5 - Pilot Port (1/8”)
6 - Piston (Aluminum alloy)
7- Piston Seal (Viton)
8 - Stem (AISI316/304)
9 - Seal Spring (AISI304)
10 - Stem Seal (PTFE)
11- Connecting Piece (CF8M/CF8)
12 - Body Seal (PTFE)
13 - Seat (PTFE)
14 - Body (CF8M/CF8)
Applications
● Beer/Beverage Filling Machinery
● Textile Printing and Dyeing
● Air Separation Technology
● Pharmacy &Medical Equipment
● Water/Sewage Disposal
● Disinfection
Dimensions
